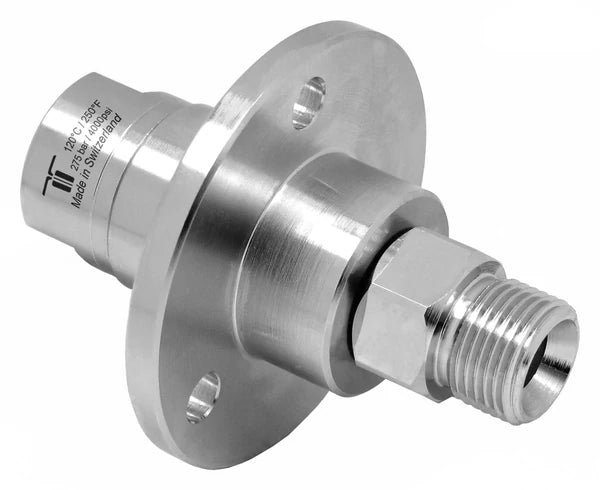

Mosmatic rotary unions DGF swivel G1 3/8"NPTF G2 G3/8"M 35.163

Mosmatic rotary unions DGF swivel G1 3/8"NPTF G2 G3/8"M 35.163

Regular price $149.99
Regular price Sale price $149.99
Sale Sold out

Product Description

High pressure cleaning technology, parts washers, tire cleaners, self rotating applications

    • High speed triple bearing system
    • Body design for easy installation
    • High precision and quality
    • Maintenance free

    G1 3/8”NPTF, G2 G3/8”M, NW 1/4”, SW1 0.87, SW2 0.75, L1 1.49, L2 0.39, Weight 11.6 oz

    Technical data

          • Pressure: 4000 psi(27.5 MPa)
          • Temperature: 90°F(at 1’000 rpm), 250°F (at 30 rpm)
          • RPM: max. 1’000 rpm)
          • Body: brass, nickel plated/li>
          • Inner part: Stainless steel
          • Seal: O-ring NBR (optional: EPDM or FKM)
          • Bearing: 2x radial ball bearings, 1x thrust ball bearing
          • Throughput: pH 3-12
          • Medium: filtered 10 microns, compressed air (290 psi)
